Multi Fader
A customisable fader which can be referenced to multiple faders or rotaries from audio processing objects by dragging and dropping the associated controls from the design pane or control panel. Adjusting the fader will then operate all of the controls associated to it. Any offsets between controls are preserved. The appearance of the fader can be changed through the properties and also by dragging and dropping colours onto it from the gallery pane.

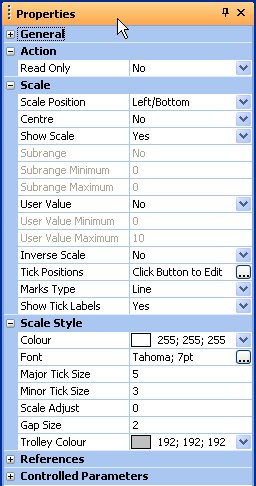

Properties
Read Only
If enabled, the control will be read only
Scale Position
Sets the position of the scale relative to the control.
Centre
Centers the the scale text horizontally.
Show Scale
When set to Yes the scale will be shown on the control.
Subrange
Sets a range within which the fade will have control.
Subrange Minimum
Sets the lower limit within the subrange.
Subrange Maximum
Sets the upper limit within the subrange.
User Value
When set to Yes allows the user to replace true values with a user defined set of values. It will normally be necessary to set the 'Tick Positions' after setting this property to yes.
User Value Minimum
Sets the lower limit of the User Value.
User Value Maximum
Sets the uper limit of the User Value.
Inverse Scale
Reverses the direction of the displayed scale.
Tick Positions
Sets the value at which to show tick marks on the scale.
Marks Type
Sets the tick mark type between line, circle and none.
Show Tick Labels
Switches visible tick marks on and off.
Colour
Sets the colour of the tick marks.
Font
Sets the font to be used for tick marks.
Major Tick Size
Sets the size in pixels for the major tick marks.
Minor Tick Size
Sets the size in pixels for the minor tick marks.
Scale Adjust
Adjusts the scale position relative to the control.
Gap Size
Sets the gap space between the text and the tick marks.
Trolley Colour
Sets the colour of the fader trolley.
