Mixer

A mixer object to mix an array of inputs to an output (or stereo output). Aux buses and groups are optional.



Inputs and Outputs

The number of inputs is dependent on the Number of Channels parameter in the Properties. By default a 4 input mixer object is created. The output is either mono or stereo. There is optionally one output for each aux bus and one output for each group bus.

Properties

Number of Channels: (2-48)

Select the number of mixer input channels.

Stereo (Yes/No)

Select whether the mixer has 1 or 2 output channels

Number of Groups (1-4)

Channels can be grouped to output together.

Number of Auxes (1-4)

The number of aux buses can be selected between 0 and 4.

Pan Law: (stereo mixers only)

The law of the pan controls may be set to either -3dB, -4.5dB or -6dB.

These figures relate to the attenuation applied to each channel at the central pan position.

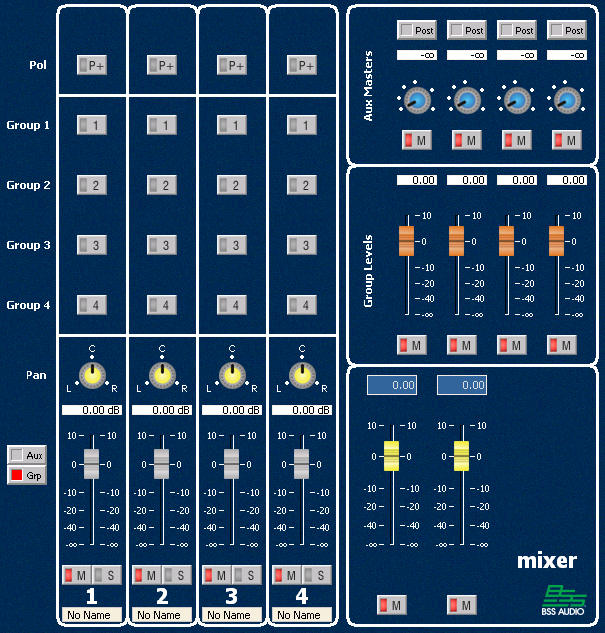

Control Panel

Fader for each input

Pan control (stereo objects only)

Mute button for each input

Polarity button for each input to invert the signal

Gain control for each output

Solo control for each input channel for quick identification of signals and level setting.

Aux send level: output control for each input for each bus (optional)

Aux Pre-Fade button to allow the aux signal to be routed either from before or after the fader (optional).

Route to group switches routing to the group outputs on or off per channel.

Signal name shows the name of the input signal

Notes

! This object is capable of raising signal levels beyond the clipping point, so care should be exercised when using positive gain values.
