Meter Trigger


Image:Meter trigger.jpg

A signal level metering object to monitor and display signal levels on the screen and to set the trigger when the reference level has been reached.

Inputs and Outputs

One input.



Control Panel

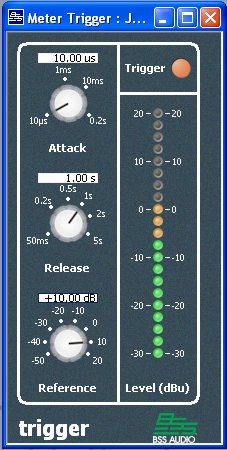

Image:Meter trigger control panel.jpg

Attack time control

  • Adjusts how the meter responds to short duration transients.

Release time control

  • Adjusts how long the meter takes to recover.

Reference control

  • Sets where 0dB on the meter refers. Sets the input level for the trigger.

Trigger

  • The trigger LED comes on when the reference level has been reached or exceeded.
