Matrix Mixer Control

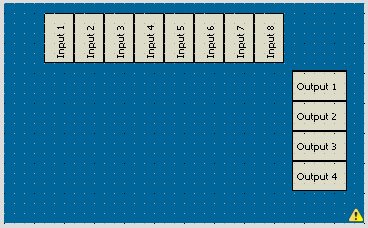

The Matrix Mixer Control is a fully customisable matrix which can be populated with crosspoints and gain controls from single or multiple matrix routers.
On/Off crosspoints and gain controls from a Matrix Mixer are added to the Matrix Mixer Control by dragging them from the Design Pane. The input to output route can be selected from the dialog box which appears. Up to 96 inputs and outputs are available. Please note that a control will not appear until both the gain and on/off crosspoint have been assigned.
The appearance of the Matrix Router Control can be customised from the Properties Pane and, by dragging colours, bitmaps and text sytles from the Gallery Pane.

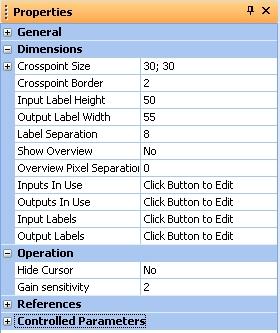

Properties
Crosspoint Size
Sets the size of each crosspoint. The first number (width) sets the horizontal matrix boxes and the second number (height) sets the vertical matrix boxes.
Crosspoint Border
Sets the space between one crosspoint and the next one on the active control panel.
Input Label Height
Sets the hight of the input (horizontal) labels.
Output Label Width
Sets the width of the output (vertical) labels.
Label Separation
Sets the space between labels and crosspoints.
Show Overview
Sets overview on and off.
Overview Pixel Separation
Sets the space between pixels on the overview representing crosspoints.
Inputs In Use
Edit this property to set which inputs are available for use from those assigned to the control.
Outputs In Use
Edit this property to set which outputs are available for use from those assigned to the control.
Input Labels
Edit this property to set the labels required for the inputs.
Output Labels
Edit this property to set the labels required for the outputs.
Hide Cursor
Allows the user to hide the cursor when changing the gain.
Gain Sensativity
Sets the sensativity of the mouse when changing gain.
