Graphic Rotary
A fully customisable rotary control which can be associated with any fader or rotary from an audio processing object. The appearance of the Graphic Rotary can be customised with bitmaps from the Gallery.

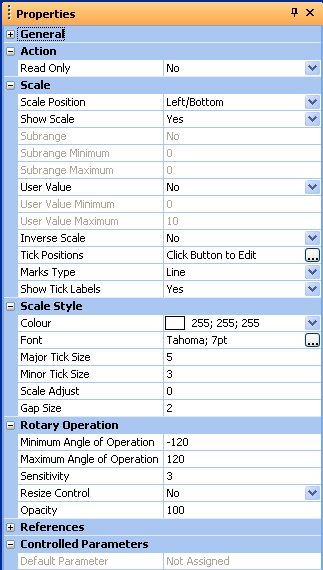

Properties
Read Only
If enabled, control will be read only
Scale Position
Sets the position of the scale relative to the control.
Show Scale
Shows the scale on the control.
Subrange
Reduces the range of the control.
Subrange Minimum
Sets the lower limit for the subrange value.
Subrange Maximum
Sets the upper limit for the subrange value.
User Value
When set to Yes will use a user given value in place of the true values in the visible scale.
User Value Minimum
Sets the lower limit for the user defined values.
Inverse Scale
When set to Yes reverses the travel of the meter scale.
Tick Position
Defines the values at which to show tick marks on the scale.
Marks Type
Sets the mark type to be used on the scale. Circle, line or none.
Show Tick Labels
Shows or hides the value labels on the scale.
Colour
Sets the colour of the scale.
font
Sets the font type visible on the scale.
Major Tick Size
Sets the size in pixels of the major tick marks.
Minor Tick Size
Sets the size in pixels of the minor tick marks.
Scale Adjust
Sets the position of the scale relative to the control.
Gap Size
Sets the gap size between the text and the tick marks.
Minimum Angle of Operation
Sets the angle of the rotary when at the minimum value.
Maximum Angle of Operation
Sets the angle of the rotary when at the maximum value.
Sensitivity
Sets the sensativity of the control. Higher numbers require greater movement to affect a change.
Resize Control
When set to yes, the control will resize with the box.
Opacity
Sets the opacity of the control.
